SD42C4404

4Bit Single Chip Microcontroller

AUK

SD42C4404 Features

* Memory mapped I/O Program memory : 4096 x 10bits (DMC42C4404) 2048 x 10bits (DMC42C4302) Data memory : 512 x 4bits (DMC42C4404) 256 x 4bits (DMC42C4302) 8-bit serial communication interface - External / Internal clock selection - Mode : Transmit, Receive Receive only Clock continuous 8-bit A/D conve

SD42C4404 General Description

The SD42C4404(4302) is a 4-bit single chip micro-computer having 4K(2K) bytes ROM and is designed with CMOS silicon gate technology. The SD42C4404 includes such peripherals as various timers, A/D converter, serial communication interface, on-chip oscillator and clock circuitry. The high performance .

SD42C4404 Datasheet (86.04 KB)

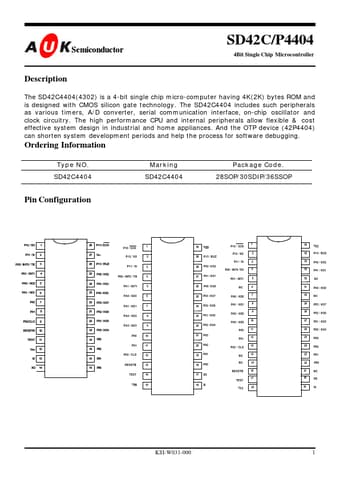

SD42C4404 Datasheet Preview — Preview of SD42C4404 PDF

Datasheet Details

Part number:

SD42C4404

Manufacturer:

AUK

File Size:

86.04 KB

Description:

4bit single chip microcontroller.
