STC403

NPN Silicon Transistor

STC403 Features

* Power Transistor General Purpose application

* Low saturation voltage : VCE(SAT)=0.4V Typ.

* High Voltage : VCEO=60V Min. Ordering Information Type NO. STC403 Marking STC403 Package Code TO-220F Outline Dimensions unit : mm PIN Connections 1. Base 2. Collector 3. Emitt

STC403 Datasheet (225.04 KB)

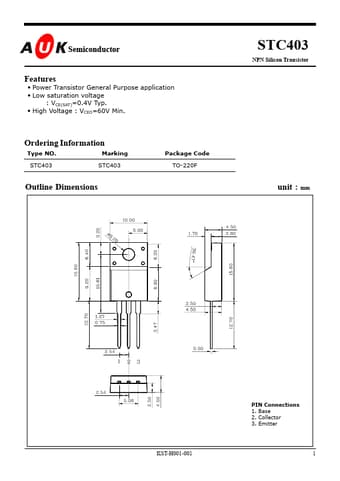

Preview of STC403 PDF

Datasheet Details

Part number:

STC403

Manufacturer:

AUK

File Size:

225.04 KB

Description:

Npn silicon transistor.
