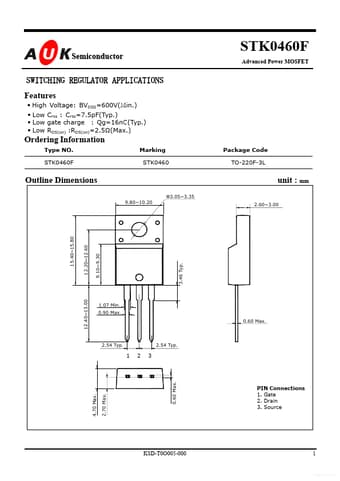

STK0460F Datasheet, Mosfet, AUK

STK0460F Features

• Mosfet
• High Voltage: BVDSS=600V(Min.) Low Crss : Crss=7.5pF(Typ.) Low gate charge : Qg=16nC(Typ.) Low RDS(on) :RDS(on)=2.5Ω(Max.) Type NO. STK0460F Mark

PDF File Details

Part number:

STK0460F

Manufacturer:

AUK

File Size:

498.54kb

Download:

📄 Datasheet

Description:

Advanced power mosfet.

STK0460F Application

• Applications Features
• High Voltage: BVDSS=600V(Min.) Low Crss : Crss=7.5pF(Typ.) Low gate charge : Qg=16nC(T
