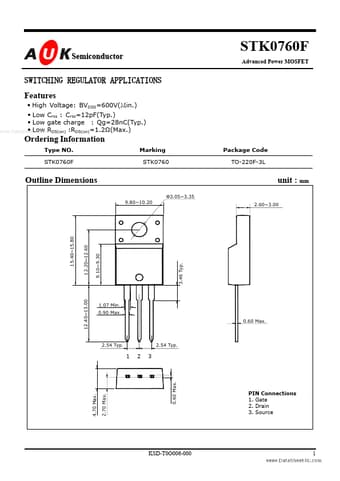

STK0760F Datasheet Preview — Preview of STK0760F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STK0760F
Manufacturer: AUK
File Size: 468.99 KB
Datasheet: STK0760F_AUK.pdf
Description: Advanced Power MOSFET

STK0760F Product details

Features

High Voltage: BVDSS=600V(Min. ).
Low Crss : Crss=12pF(Typ. ).
Low gate charge : Qg=28nC(Typ. ).
Low RDS(on) :RDS(on)=1.2Ω(Max. ) www. DataSheet4U. com Ordering Information Type NO. STK0760F Marking STK0760 Package Code TO-220F-3L Outline Dimensions Φ3.05~3.35 9.80~10.20 unit : mm 2.60~3.00 15.40~15.80 12.20~12.60 9.10~9.30 12.40~13.00 1.07 Min. 0.90 Max. 0.60 Max. 2.54 Typ. 2.54 Typ. 1 2 3 0.60 Max. 3.46 Typ. 4.70 Max. 2.70 Max. PIN Connections 1.
