SUF3001 - Dual P-ch Trench MOSFET

Product Overview

AUK

Part number	SUF3001
Manufacturer	AUK
File Size	334.72 KB
Description	Dual P-ch Trench MOSFET
Datasheet	SUF3001 Datasheet

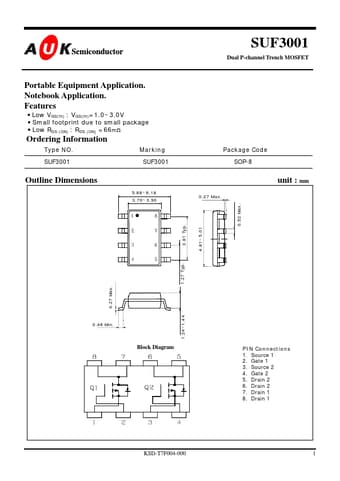

Additional preview pages of the SUF3001 datasheet.

Low VGS(th) : VGS(th)=1.0~3.0V.
Small footprint due to small package.
Low RDS (ON) : RDS (ON) =66mΩ Ordering Information Type NO. Marking SUF3001 SUF3001 Outline Dimensions 5.88~6.18 3.70~3.90 SUF3001 Dual P-channel Trench MOSFET Package Code SOP-8 unit : mm 0.27 Max. 0.52 Max. 4.81~5.01 3.81 Typ. 1.27 Typ. 0.27 Max. 1.24~1.44 0.46 Min. Block Diagram KSD-T7F004-000 PIN Connections 1. Source 1 2. Gate 1 3. Source 2 4. Gate 2 5. Drain 2 6. Drain 2 7. Dr.
