SUN09A65F - New Generation N-Ch Power MOSFET

AUK

The SUN09A65F by AUK is a New Generation N-Ch Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SUN09A65F New Generation N-Ch Power MOSFET by AUK - Datasheet Preview — Official preview page of the SUN09A65F New Generation N-Ch Power MOSFET datasheet (AUK).

Datasheet Details

Part number	SUN09A65F
Manufacturer	AUK
File Size	565.92 KB
Description	New Generation N-Ch Power MOSFET
Datasheet	SUN09A65F-AUK.pdf

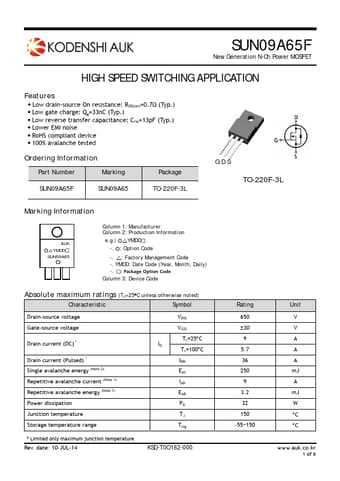

Additional preview pages of the SUN09A65F datasheet.

SUN09A65F Product details

Features

Low drain-source On resistance: RDS(on)=0.7Ω (Typ. ).
Low gate charge: Qg=33nC (Typ. ).
Low reverse transfer capacitance: Crss=13pF (Typ. ).
Lower EMI noise.
RoHS compliant device.
100% avalanche tested Ordering Information Part Number Marking Package SUN09A65F SUN09A65 TO-220F-3L GDS TO-220F-3L Marking Information AAUUKK ◎S△UYNΔM09YDADM6.
D5D SDB20D45 Column 1: Manufacturer Column 2: Production Information e. g. ) ◎△YMDD.
-. ◎: Option Code -.
