ADJD-E622-QR999 RGB Color Sensor

ADJD-E622-QR999 is a high performance, small in size, cost effective light to voltage converting sensor. The sensor combines a photodiode array and three transimpedance amplifiers in a single monolithic CMOS IC solution. With a Red (R), Green (G) and Blue (B) color filters coated over the photodiode.

ADJD-E622-QR999 Features

* Convert light to R,G,B voltage output

* Monolithic CMOS IC solution comprises of an array of photodiode coated with R,G, B color filter and integrated with transimpedance amplifier.

* Independent gain selection options for each R,G,B channel

* 3 sets of 3x3 photodio

ADJD-E622-QR999_AVAGOTECHNOLOGIESLIMITED.pdf

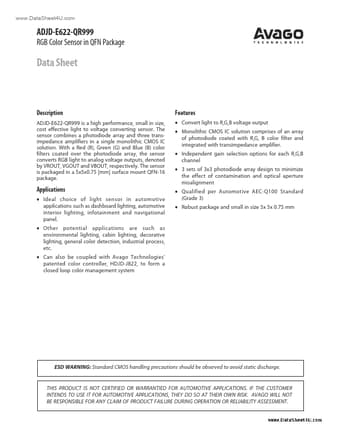

Preview of ADJD-E622-QR999 PDF
ADJD-E622-QR999 Datasheet Preview Page 2 ADJD-E622-QR999 Datasheet Preview Page 3

Datasheet Details

Part number:

ADJD-E622-QR999

Manufacturer:

AVAGO TECHNOLOGIES LIMITED

File Size:

158.29 KB

Description:

Rgb color sensor.
