ACPF-7005 Datasheet, filter equivalent, AVAGO

ACPF-7005 Features

  • Filter
  • 50 Ω Input/Output
  • High rejection enables elimination of switches
  • Miniature Size
      – 1.6 x 2.0 mm size
      – 1.1 mm Max Height

PDF File Details

Part number:

ACPF-7005

Manufacturer:

AVAGO

File Size:

1.07MB

Download:

📄 Datasheet

Description:

Pcs (a-g) / umts band 2 tx bandpass filter. The Avago ACPF-7005 is a miniaturized Bandpass Filter designed for use in handsets and mobile data terminals operating in the PCS (Bl

Datasheet Preview: ACPF-7005 📥 Download PDF (1.07MB)

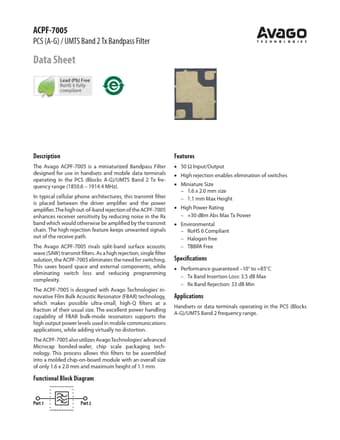

Page 2 of ACPF-7005 Page 3 of ACPF-7005

ACPF-7005 Application

  • Applications while adding virtually no distortion. The ACPF-7005 also utilizes Avago Technologies’advanced Microcap bonded-wafer, chip scale packag
