ACPL-K44T

Wide Operating Temperature 1MBd Digital Optocoupler

ACPL-K44T General Description

The ACPL-K43T is a single channel, high temperature, high CMR, high speed digital optocoupler in an eight lead miniature footprint specifically used in the automotive applications. The ACPL-K44T is a dual channel equivalent of the ACPL-K43T. Both products are available in the stretched SO-8 package .

ACPL-K44T Datasheet (127.48 KB)

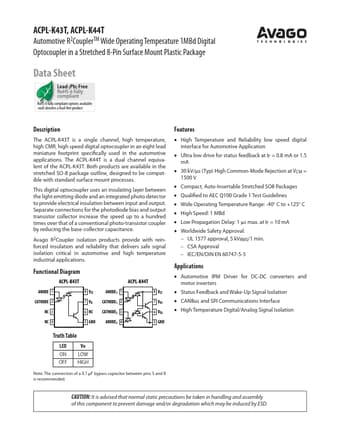

Preview of ACPL-K44T PDF

Datasheet Details

Part number:

ACPL-K44T

Manufacturer:

AVAGO

File Size:

127.48 KB

Description:

Wide operating temperature 1mbd digital optocoupler.
ACPL-K43T, ACPL-K44T Automotive R2CouplerTM Wide Operating Temperature 1MBd Digital Optocoupler in a Stretched 8-Pin Surface Mount Plastic Package Dat.
