HCNR200 - High-Linearity Analog Optocouplers

HCNR200 Description

HCNR200 and HCNR201 High-Linearity Analog Optocouplers Data Sheet Lead (Pb) Free RcoomHSpl6iafnutlly RoHS 6 fully compliant options available; -xxxE d.
The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illumi‑ nates two closely matched photodiodes.

HCNR200 Features

* Low nonlinearity: 0.01%
* KH3C(NIPDR22/I0P0D1:)±tr1a5n%sfer gain HCNR201: ±5%
* Low gain temperature coefficient: ‑65 ppm/°C
* Wide bandwidth
* DC to >1 MHz
* Worldwide safety approval
*   UL 1577 recognized (5 kV rms/1 min rating)

HCNR200 Applications

* that require good stabil‑ ity, linearity, bandwidth and low cost. The HCNR200/201 is very flexible and, by approp­ riate design of the appli‑ cation circuit, is capable of operating in many different modes, includ­ing: unipolar/bipolar, ac/dc and inverting/ non-inverting. The HCNR200/201 is an excel

📥 Download Datasheet

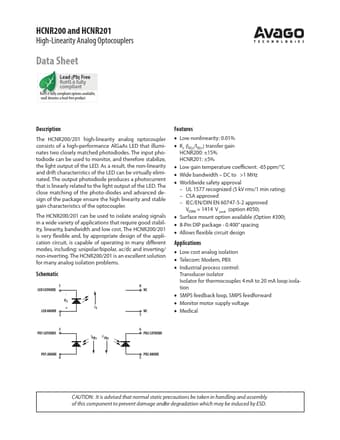

Preview of HCNR200 PDF
