HDSP-K111

Black Surface Seven Segment Displays

HDSP-K111 Features

* Black surface and color tinted epoxy

* Industry standard size

* Industry standard pinout

* Choice of character size 7.6 mm (0.30 in.), 10 mm (0.40 in.), 14.2 mm (0.56 in.)

* Choice of colors AlGaAs Red, High Efficiency Red (HER), Green, Orange

* Exce

HDSP-K111 General Description

These devices use industry standard size package and pinout. Available with black surface finish. All devices are available as either common anode or common cathode. Typical applications include appliances, channel indicators of TV, CATV converters, game machines, and point of sale terminals. Featu.

HDSP-K111 Datasheet (260.76 KB)

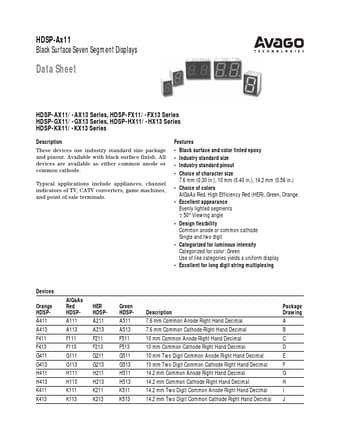

Preview of HDSP-K111 PDF

Datasheet Details

Part number:

HDSP-K111

Manufacturer:

AVAGO

File Size:

260.76 KB

Description:

Black surface seven segment displays.
HDSP-Ax11 Black Surface Seven Segment Displays Data Sheet HDSP-AX11/-AX13 Series, HDSP-FX11/-FX13 Series HDSP-GX11/-GX13 Series, HDSP-HX11/-HX13 Seri.
