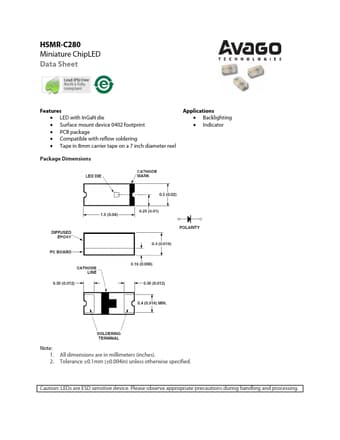

HSMR-C280
Features
- LED with In Ga N die
- Surface mount device 0402 footprint
- PCB package
- patible with reflow soldering
- Tape in 8mm carrier tape on a 7 inch diameter reel
Applications
- Backlighting
- Indicator
Package Dimensions
Note: 1. All dimensions are in millimeters (inches). 2. Tolerance ±0.1mm (±0.004in) unless otherwise specified.
Caution: LEDs are ESD sensitive device. Please observe appropriate precautions during handling and processing.
Absolute Maximum Value at TA = 25°C
Parameter
In Ga N Blue
Forward Current1
Peak Pulsing Current2
Power Dissipation
LED Junction Temperature
Operating Temperature Range
-30 to 85
Storage Temperature Range
-40 to 85
Note:
1. Derate as shown in Figure 5. 2. Pulse condition of 1/10 duty and 0.1ms width.
Unit m A m A m W °C °C °C
Optical Characteristics at TA = 25°C, IF=20m A
Color
Luminous Intensity Iv (mcd)1
Peak Wavelength λp(nm)
Dominant Wavelength
λd(nm)2
Viewing Angle 2θ1/23
Min Typ Typ Typ Typ
Blue 28.5...
