AV2188 Datasheet - AVS

Multi-Channel Audio CODEC

AV2188 Features

* Six Channel 24/20-bit DACs. - 102 dB SNR - 104 dB Dynamic Range. - -90 dB THD + N Ratio. - 32, 44.1 48 and 96 KHz. Sampling rates. - 20-bit and 24-bit Digital Inputs. - Containing Digital De-emphasis Filters. - Digital Volume Control. - I2S, Left and Right Justified Digital Input Formats.

AV2188 General Description

The AV2188 is a mixed signal CMOS monolithic audio CODEC. It consists six channels sigma delta DACs and two channels sigma delta ADCs. The DACs support 20-bit and 24-bit input data, while the ADCs provides 24-bit MSB justified data output. XCK REQUIREMENT The AV2188 support 384 and 256 times sampli.

AV2188 Datasheet (198.13 KB)

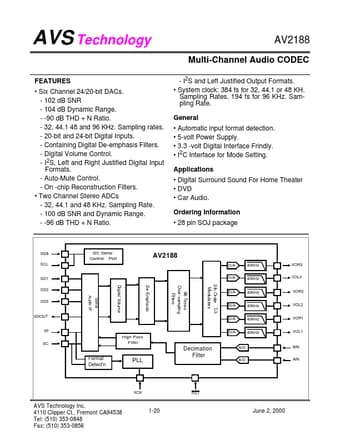

Preview of AV2188 PDF

Datasheet Details

Part number:

AV2188

Manufacturer:

AVS

File Size:

198.13 KB

Description:

Multi-channel audio codec.
