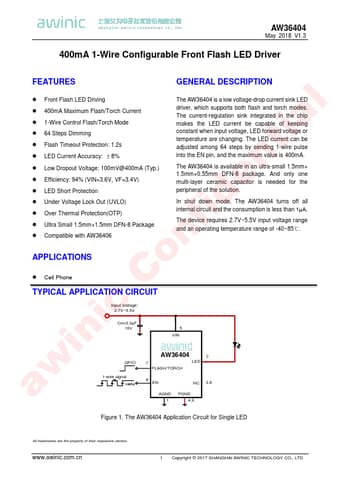

AW36404 Datasheet, Driver, AWINIC

AW36404 Features

• Driver GENERAL DESCRIPTION
• Front Flash LED Driving
• 400mA Maximum Flash/Torch Current
• 1-Wire Control Flash/Torch Mode
• 64 Steps Dimming
• Flash

PDF File Details

Part number:

AW36404

Manufacturer:

AWINIC

File Size:

1.26MB

Download:

📄 Datasheet

Description:

400ma 1-wire configurable front flash led driver.

Front Flash LED Driving

400mA Maximum Flash/Torch Current

1-Wire Control Flash/Torch Mode

64

AW36404 Application

• Applications The AW36404 is a low voltage-drop current sink LED l driver, which supports both flash and torch modes. The current-regulation sink in
