AX6640 Low Noise CMOS Triple LDOs Regulator

AX6640 Description

AX6640 Low Noise CMOS Triple LDOs Regulator  GENERAL .
The AX6640 is a three channel, high accurately, low quiescent current, low noise, low dropout CMOS LDO regulator.

AX6640 Features

* Input voltage range: 3.0V to 5.5V Operating Output voltage type : Channel 1 output voltage: 1.8V, 2.8V and 3.3V Channel 2 output voltage: 2.8V and 3.3V Channel 3 output voltage: 2.8V € and 3.3V b Ñ y
* 100mV Dropout at 100mA w`R output current (VOUT=3.3V) m Û Output current is V up to 150mA/

AX6640 Applications

* requiring minimum board space and smallest components. These capacitors must be correctly selected for good performance. Please note that linear regulators with a low dropout voltage have high internal loop gains which require care in guarding against oscillation caused by insufficient decoupling ca

📥 Download Datasheet

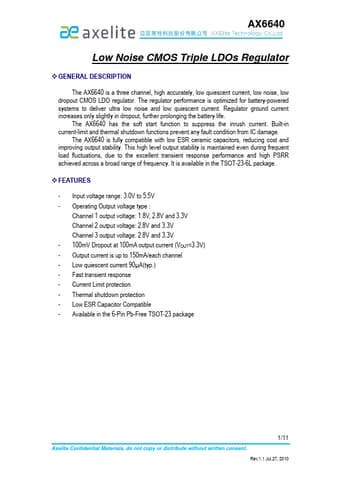

Preview of AX6640 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX6640
Manufacturer
AXElite
File Size
711.64 KB
Datasheet
AX6640-AXElite.pdf
Description
Low Noise CMOS Triple LDOs Regulator
