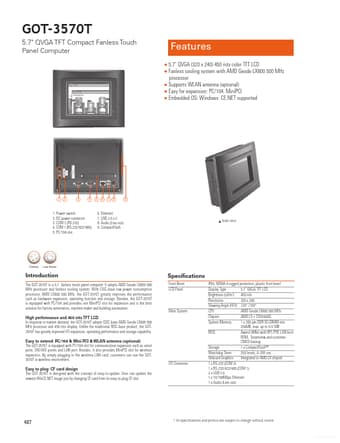

GOT-3570T - QVGA TFT Compact Fanless Touch Panel Computer

AXIOMTEK

Datasheet Details

Part number	GOT-3570T
Manufacturer	AXIOMTEK
File Size	368.24 KB
Description	QVGA TFT Compact Fanless Touch Panel Computer
Datasheet	GOT-3570T_AXIOMTEK.pdf

5.7" QVGA (320 x 240) 450 nits color TFT LCD.
Fanless cooling system with AMD Geode LX800 500 MHz processor.
Supports WLAN antenna (optional).
Easy for expansion: PC/104, MiniPCI.
Embedded OS: Windows CE. NET supported 1 2 3 4 5 6 7 8 9 1. Power switch 2. DC power connector 3. COM 2 (RS-232) 4. COM 1 (RS-232/422/485) 5. PC/104 slot 6. Ethernet 7. USB 2.0 x 2 8. Audio (Line-out) 9. CompactFlash Side view Fanless Low Power DualView Extended Temperature.
