ACM2002E SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY

Executing time fosc=250khz 1.64ms Clear Display Cursor at Home 0 0 0 0 0 0 0 0 0 1 Clears Display & Returns to Address 0. 0 0 0 0 0 0 0 0 1 x Returns Cursor to Address 0. Also returns the display being shifted to the original position. DDRAM contents remain unchanged. I/D: Set C.

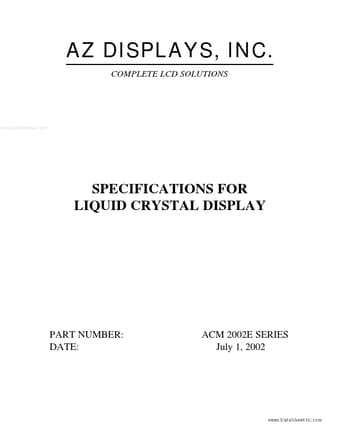

AZ DISPLAYS, INC. COMPLETE LCD SOLUTIONS www.DataSheet4U.com SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY PART NUMBER: DATE: ACM 2002E SERIES July 1, 2002 ACM2002E SERIES LCD MODULE 1.0 MECHANICAL SPECS 1. Overall Module Size 116.0mm(W) x 37.0mm(H) x max 13.5mm(D) for LED backlight version 116.0mm(W) x 37.0mm(H) x max 9.5mm(D) for reflective version 2. Dot Size 3. Dot Pitch 4. Duty 5. Controller IC 6. LC Fluid Options www.DataSheet4U.com 7. Polarizer 0.60mm(W) x 0.65mm(H) 0.65mm(W) x 0.70mm(H.
