ATM0700D38B-CTN - LIQUID CRYSTAL DISPLAY

AZ Displays

Datasheet Details

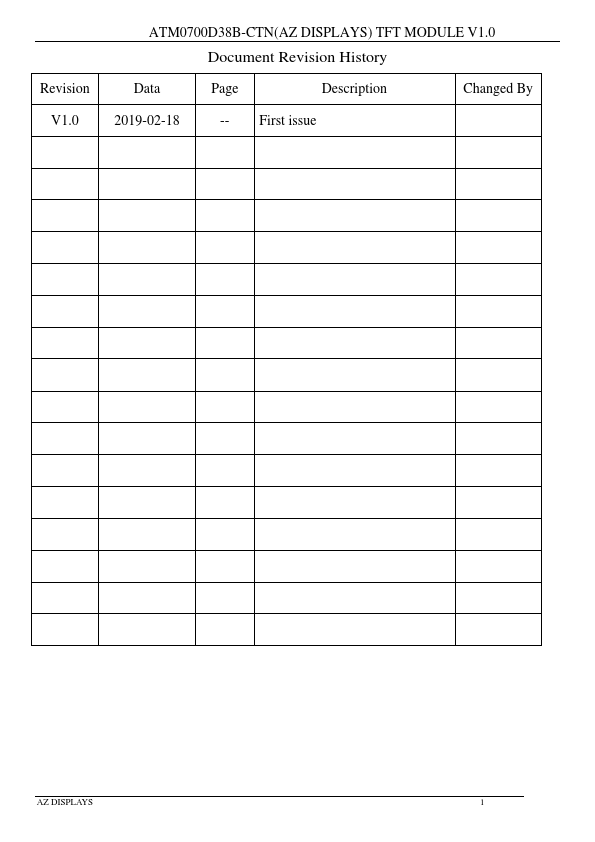

Changed By 2019-02-18 -- First issue AZ

of this product are listed in the following table. 1.2 Functions & Features Table1.1 Module Functions & Features Parameter LCD Mode Color Display Resolution Dot Pitch (W.
H) Pixel pitch(W.
H) Outline Dimension Active Area(A. A) Pixel Arrangement Viewing Direction Display Mode Surface Treatment Back-light Average Brightness Operation Temperature Storage Temperature Value a-Si TFT/transmissive 18 bit 800.
3(RGB).
480 0.0640mm(W) x 0.1805mm(H) 0.1920mm(W) x 0.1805mm (H) 164.9(W).
