ABM8AIG

Automotive & Industrial Grade Ceramic Base SMD Crystal

ABM8AIG Features

* AEC-Q200 Qualified

* Automotive Grade 1: -40°C to +125°C

* Automotive Grade 0: -40°C to +150°C (Available Upon Request)

* TS16949 Production Line Certified

* PPAP Available Upon Request

* Hermetic

ABM8AIG General Description

Preheat / Soak Reflow Peak heat Temperature TSMIN ~ TSMAX 150°C ~ 180°C TL 230°C TP 260°C±5°C Time 60 ~ 120 sec. 30 ~ 40 sec. 10 sec. MAX 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 LLC For terms and conditions of sales, please visit: www.abracon.com REVISED: .

ABM8AIG Datasheet (729.18 KB)

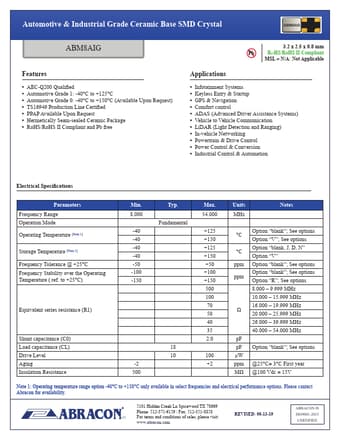

Preview of ABM8AIG PDF

Datasheet Details

Part number:

ABM8AIG

Manufacturer:

Abracon Corporation

File Size:

729.18 KB

Description:

Automotive & industrial grade ceramic base smd crystal.
