ADFC23 MULTI-LAYER DIELECTRIC FILTER

MULTI-LAYER DIELECTRIC FILTER ADFC23 SERIES STANDARD SPECIFICATIONS: ADFC23-1890.00 - A CHARACTERISTICS Center Frequency Fc Bandwidth Insertion Loss Ripple V.S.W.R. www.DataSheet4U.com Relative Attenuation 1660 ~ 1680 MHz @ 3800 MHz @ 5700 MHz UNIT MHz MHz dB dB BW dB dB dB TYP. 1890.00 +/-10.0 ≤2.0 ≤0.5 ≤2.0 ≥24 ≥32 ≥24 TOL. +/-2.0 +/-1.0 +/-0.5 ≤0.5 +/-0.2 +/-2.0 +/-2.0 +/-2.0 Operating Temperature Storage Temperature Impedance @ Input/Output Input Power Reli.

ADFC23_AbraconCorporation.pdf

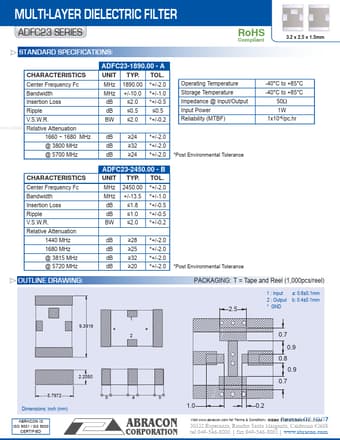

ADFC23 Datasheet Preview — Preview of ADFC23 PDF

Datasheet Details

Part number:

ADFC23

Manufacturer:

Abracon Corporation

File Size:

152.55 KB

Description:

Multi-layer dielectric filter.
