ASV-11.0592MHZ-E-T

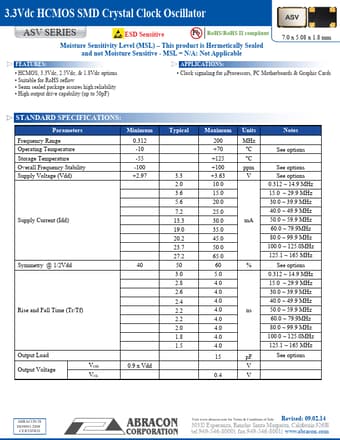

ASV-11.0592MHZ-E-T is 3.3Vdc HCMOS SMD Crystal Clock Oscillator manufactured by Abracon.
- Part of the ASV-1.8432MHZ-EJ-T comparator family.
- Part of the ASV-1.8432MHZ-EJ-T comparator family.
FEATURES
:
- HCMOS, 3.3Vdc, 2.5Vdc, & 1.8Vdc options
- Suitable for Ro HS reflow
- Seam sealed package assures high reliability
- High output drive capability (up to 50p F)
APPLICATIONS:
- Clock signaling for μProcessors, PC Motherboards & Graphic Cards
STANDARD SPECIFICATIONS:
Parameters
Frequency Range Operating Temperature Storage Temperature Overall Frequency Stability Supply Voltage (Vdd)
Minimum
0.312 -10 -55 -100 +2.97
Supply Current (Idd)
Symmetry @ 1/2Vdd
Rise and Fall Time (Tr/Tf)
Output Load Output Voltage
VOH 0.9 x Vdd VOL
Typical
3.3 2.0 3.6 5.6 7.2 13.3 19.0 20.2 23.7 27.2 50 3.0 2.8 2.6 2.4 2.2 2.2 2.0 1.8 1.5
Maximum
200 +70 +125 +100 +3.63 10.0 15.0 20.0
25.0 30.0 35.0 45.0 50.0 65.0 60 5.0 4.0 4.0 4.0...
