DP650

Miniature LCD Display Digital Panel Meters

DP650 Features

* The DP-650 Series employs a dual slope integrating A/D converter, and operates from an internal 100mV reference via a precision DC-to-DC converter. Typical accuracy is ±0.1%. F e a t u r e s

* Convenient snap-in bezel package

* Very low power consumption (5VDC @ 3mA)

* Diff

DP650 General Description

The DP-650 Series is an ultra-compact, low-power LCD meter requiring only 15mW of power. This meter is ideal for applications requiring a highly reliable LCD display in a small package. The snap-in bezel packaging enables easy and rapid installation of the meter. The simplicity of design, overvoltag.

DP650 Datasheet (148.78 KB)

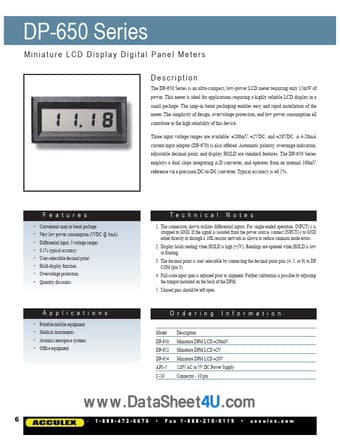

Preview of DP650 PDF

Datasheet Details

Part number:

DP650

Manufacturer:

Acculex

File Size:

148.78 KB

Description:

Miniature lcd display digital panel meters.
