ACT6390, ACT6390_Active (ACT6390 / ACT6391) 1.7A/2.5A PWM Step-Up DC/DC Converters

ACT6390 Description

www.DataSheet4U.com ACT6390/ACT6391 Rev0, 13-May-08 1.7A/2.5A PWM Step-Up DC/DC Converters In MSOP .
The ACT6390/ACT6391 are high-performance, fixed-frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs.

ACT6390 Applications

* Additional functions include an externally programmable soft-start function for easy inrush current control, internal over-voltage protection (OVP), cycle-by-cycle current limit protection, and thermal shutdown. Both the ACT6390 and the ACT6391 are available in the small 8-pin MSOP-8 package.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT6390, ACT6390_Active. Please refer to the document for exact specifications by model.

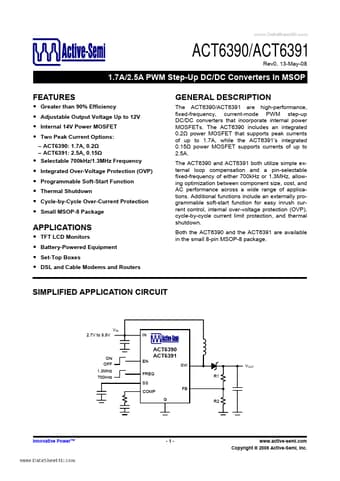

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT6390, ACT6390_Active
Manufacturer
Active-Semi
File Size
508.87 KB
Datasheet
ACT6390_Active-Semi.pdf
Description
(ACT6390 / ACT6391) 1.7A/2.5A PWM Step-Up DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: ACT6390, ACT6390_Active.
Please refer to the document for exact specifications by model.
