AEP820B08TFLT

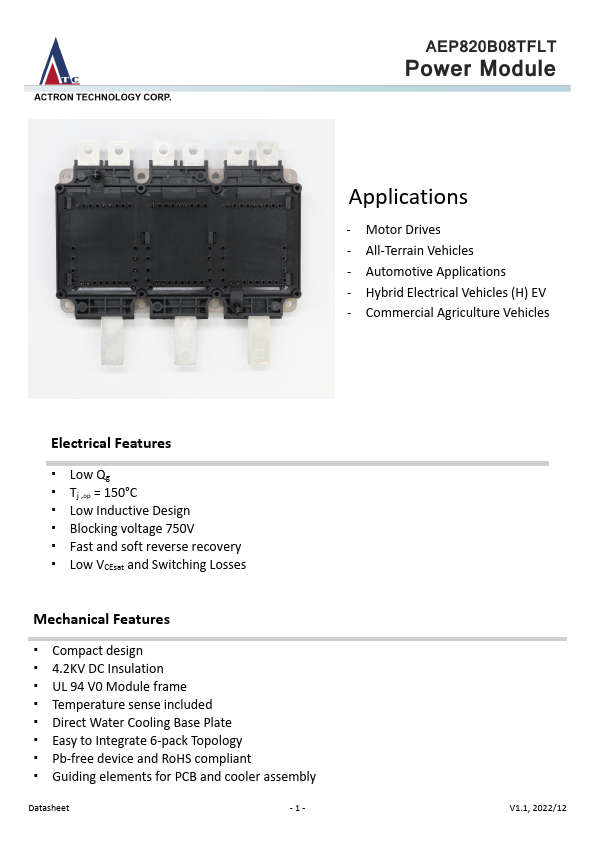

Features
Low Qg Tj ,op = 150°C Low Inductive Design Blocking voltage 750V Fast and soft reverse recovery Low VCEsat and Switching Losses
Mechanical Features
pact design 4.2KV DC Insulation UL 94 V0 Module frame Temperature sense included Direct Water Cooling Base Plate Easy to Integrate 6-pack Topology Pb-free device and Ro HS pliant Guiding elements for PCB and cooler assembly
-1-
V1.1, 2022/12
FEATURES
High speed, low loss IGBT module High reliability, high durability module

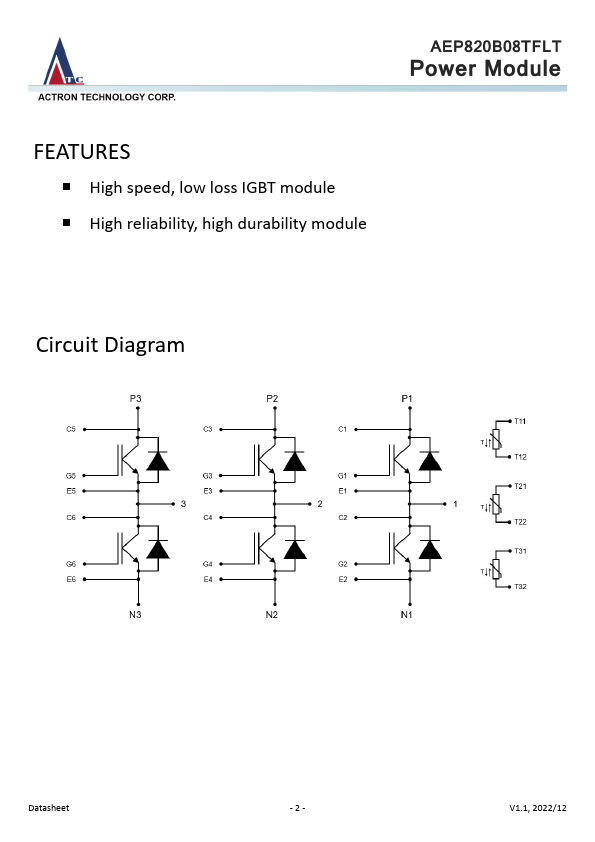

Circuit Diagram
-2-
V1.1, 2022/12
IGBT Inverter
▍Maximum Rated Values
Parameter
Collector-emitter voltage
Tj = 25°C
Gate-emitter peak voltage
Conditions
Implemented collector current
Continuous DC collector current Repetitive peak collector current Maximum Junction Temperature
TF = 70°C, Tj = 175°C tp = 1 ms
Symbol
VCES VGES ICN IC nom ICRM Tj,max
Values
750 ±20 820 450 1640 175
Unit
V V A A A o C
▍Characteristics Values
Parameter
Conditions...
