AQ506

(AQ504 / AQ506) Current Regulator Diode

AQ506 Features

* No separate voltage source required

* Excellent temperature performance

* High Dynamic Impedance

* Offered in SOT23 & SC70 packages

* RoHS compliant available Pin Configuration (Top View) Block Diagram Electrical Characteristic www.acutechnology.com AQ50

AQ506 General Description

The AQ506/504 is a 2-terminal current regulator capable of delivering a constant current over a wide voltage range, and requires no separate voltage source or supporting components. The AQ506/504 is a bipolar integrated circuit that replaces legacy JFET devices. Its low cost, small size, and simplic.

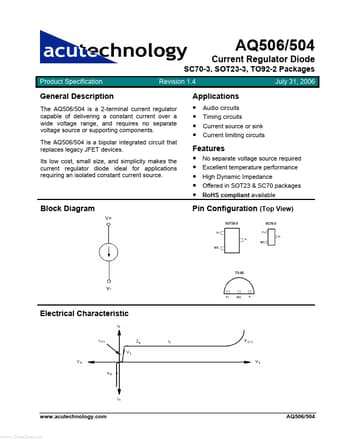

AQ506 Datasheet (488.58 KB)

Preview of AQ506 PDF

Datasheet Details

Part number:

AQ506

Manufacturer:

Acutechnology Semiconductor

File Size:

488.58 KB

Description:

(aq504 / aq506) current regulator diode.
