AIC-6360Q, AIC-6360 Datasheet - Adaptec

AIC-6360Q - PC-AT bus to SCSI bus host adapter

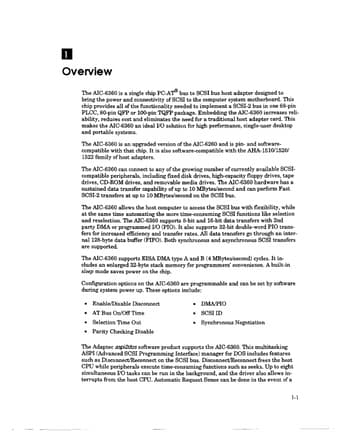

II Overview The AIC-6360 is a single chip PC-AT® bus to SCSI bus host adapter designed to bring the power and connectivity of SCSI to the computer system motherboard.

This chip provides all of the functionality needed to implement a SCSI-2 bus in one 68-pin PLCC, 80-pin QFP or 100-pin TQFP package.

Embedding the AIC-6360 increases reliability, reduces cost and eliminates the need for a traditional host adapter card.

This makes the AIC-6360 an ideal I/O solution for high performance, single-user

AIC-6360Q Features

* such as Disconnect/Reconnect on the SCSI bus. Disconnect/Reconnect frees the host CPU while peripherals execute time-consuming functions such as seeks. Up to eight simultaneous I/O tasks can be run in the background, and the driver also allows interrupts from the host CPU. Automatic Request Sense ca

AIC-6360-Adaptec.pdf

This datasheet PDF includes multiple part numbers: AIC-6360Q, AIC-6360. Please refer to the document for exact specifications by model.
AIC-6360Q Datasheet Preview Page 2 AIC-6360Q Datasheet Preview Page 3

Datasheet Details

Part number:

AIC-6360Q, AIC-6360

Manufacturer:

Adaptec

File Size:

2.55 MB

Description:

Pc-at bus to scsi bus host adapter.

Note:

This datasheet PDF includes multiple part numbers: AIC-6360Q, AIC-6360.
Please refer to the document for exact specifications by model.
