Part number: AAT1168B
Manufacturer: Advanced Analog Technology
File Size: 1.11MB
Download: 📄 Datasheet
Description: TRIPLE-CHANNEL TFT LCD POWER SOLUTION
Built in 3A, 0.2Ω Switching NMOS
www.DataSheet4U.com Positive LDO Driver

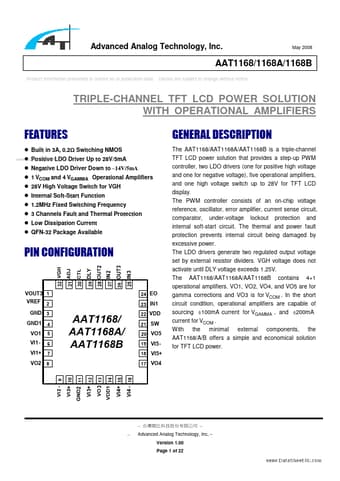

GENERAL DESCRIPTION
The AAT1168/AAT1168A/AAT1168B is a triple-channel TFT LCD power solution tha.
The AAT1168/AAT1168A/AAT1168B is a triple-channel TFT LCD power solution that provides a step-up PWM controller, two LDO drivers (one for positive high voltage and one for negative voltage), five operational amplifiers, and one high voltage switch up.
Image gallery
