A7510 Datasheet - Advanced Innovation Technology

A7510 - 180KHz DC-DC CONVERTER

The A7510 is a monolithic switching regulator control circuit containing the primary functions required for DC-DC converters.

This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high c

A7510 Features

* Output Switching Current to 1.4A Output Voltage Adjustable Low Standby Current Precision 2% Reference Operation from 3.0V to 36V Input Operation Frequency Up to 180KHz 8Pin SOIC Package Application LCD Backlight Power Supply Negative Voltage Power Supply ADSL Modem Battery Charger Pin Assignment Pi

A7510-AdvancedInnovationTechnology.pdf

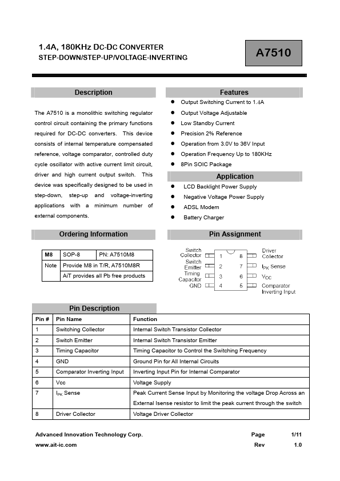

Preview of A7510 PDF
A7510 Datasheet Preview Page 2 A7510 Datasheet Preview Page 3

Datasheet Details

Part number:

A7510

Manufacturer:

Advanced Innovation Technology

File Size:

373.64 KB

Description:

180khz dc-dc converter.
