2KSxxx, 2KS160, (2KSxxx) Peel A Way Low Insertion Force PGA Sockets

Low Insertion Force Peel-A-Way® PGA Sockets 5 Energy Way, P.O.Box 1019, West Warwick, RI 02893 USA Tel.800-424-9850/401-823-5200 * Fax 401-8.

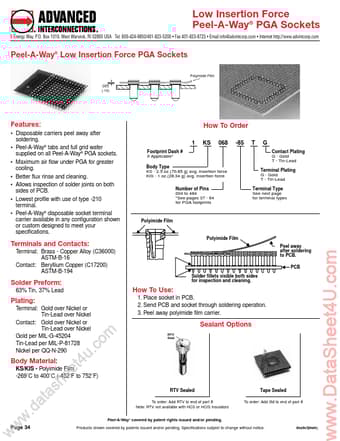

datasheet Preview Page 1 from Datasheet4u.com

2KS160_AdvancedInterconnections.pdf

2KSxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: 2KSxxx, 2KS160. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2KSxxx, 2KS160

Manufacturer:

Advanced Interconnections

File Size:

230.91 KB

Description:

(2KSxxx) Peel A Way Low Insertion Force PGA Sockets

Note:

This datasheet PDF includes multiple part numbers: 2KSxxx, 2KS160.
Please refer to the document for exact specifications by model.

Features

* Disposable carriers peel away after soldering.
* Peel-A-Way® tabs and full grid wafer supplied on all Peel-A-Way® PGA sockets.
* Maximum air flow under PGA for greater cooling.
* Better flux rinse and cleaning.
* Allows inspection of solder joints on both s

Applications

* For custom solder preform terminal applications consult factory.
* See previous page for material specifications and how to order information. .072 Dia. (1.83) .072 Dia. (1.83) .165 .165 (4.19) (4.19) Solder Preform .125 .125 (3.18) (3.18) .020 Dia. (.51) .130 (3.30) Solder P
