ALD1102B DUAL P-CHANNEL MATCHED MOSFET PAIR

The ALD1102 is a monolithic dual P-channel matched transistor pair intended for a broad range of analog applications. These enhancementmode transistors are manufactured with Advanced Linear Devices' enhanced ACMOS silicon gate CMOS process. The ALD1102 offers high input impedance and negative curren.

ALD1102B Features

* Low threshold voltage of 0.7V

* Low input capacitance

* Low Vos grades

* 2mV, 5mV, 10mV

* High input impedance

* 1012Ω typical

* Low input and output leakage currents

* Negative current (IDS) temperature coefficient

* Enhancem

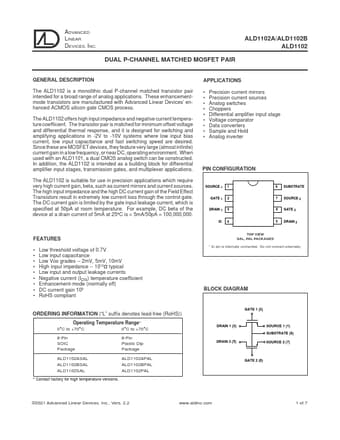

ALD1102-AdvancedLinearDevices.pdf

ALD1102B Datasheet Preview — This datasheet PDF includes multiple part numbers: ALD1102B, ALD1102. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ALD1102B, ALD1102

Manufacturer:

Advanced Linear Devices

File Size:

67.10 KB

Description:

Dual p-channel matched mosfet pair.

Note:

This datasheet PDF includes multiple part numbers: ALD1102B, ALD1102.
Please refer to the document for exact specifications by model.
