ALD2502, SINGLE/DUAL PRECISION HIGH SPEED MICROPOWER TIMER

ADVANCED LINEAR DEVICES, INC.ALD1502/ALD2502 SINGLE/DUAL PRECISION HIGH SPEED MICROPOWER TIMER GENERAL .
The ALD1502/ALD2502 timers are high performance single/dual monolithic timing circuits built with advanced silicon gate CMOS technology.

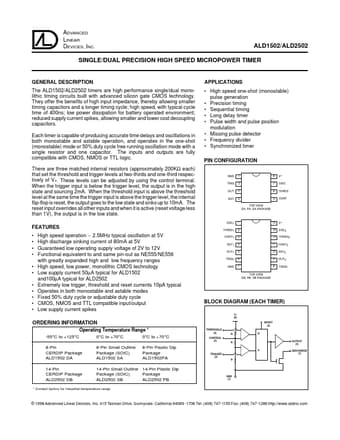

datasheet Preview Page 1 from Datasheet4u.com

ALD2502_AdvancedLinearDevices.pdf

ALD2502 Datasheet Preview — Preview of ALD2502 PDF

Datasheet Details

Part number:

ALD2502

Manufacturer:

Advanced Linear Devices

File Size:

38.48 KB

Description:

SINGLE/DUAL PRECISION HIGH SPEED MICROPOWER TIMER

Features

* High speed operation
* 2.5MHz typical oscillation at 5V High discharge sinking current of 80mA at 5V Guaranteed low operating supply voltage of 2V to 12V Functional equivalent to and

Applications

* High speed one-shot (monostable) pulse generation Precision timing Sequential timing Long delay timer Pulse width and pulse position modulation
* Missing pulse detector
* Frequency divider
* Synchronized timer
* PIN CONFIGURATI
