29F002 - 2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory

Advanced Micro Devices

The 29F002 by Advanced Micro Devices is a 2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

29F002 2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory by Advanced Micro Devices - Datasheet Preview — Official preview page of the **29F002** 2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory datasheet (Advanced Micro Devices).

Datasheet Details

Part number	29F002
Manufacturer	Advanced Micro Devices
File Size	436.41 KB
Description	2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory
Datasheet	29F002_AdvancedMicroDevices.pdf

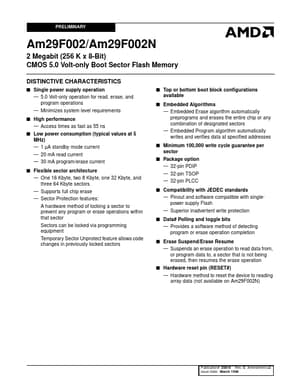

Additional preview pages of the 29F002 datasheet.

29F002 Product details

Description

The Am29F002 Family consists of 2 Mbit, 5.0 volt-only Flash memory devices organized as 262,144 bytes. DQ0.

Features

A hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors s Top or bottom boot block configurations available s Embedded Algorithms.
Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors.
Embedded Program algorithm automatically writes and ve.
