MACH111-15 Datasheet - Advanced Micro Devices

MACH111-15 High-Performance EE CMOS Programmable Logic

The MACH111 is a member of Vantis’ high-performance EE CMOS MACH 1 & 2 families. This device has approximately three times the logic macrocell capability of the popular PALCE22V10 without loss of speed. The MACH111 consists of two PAL® blocks interconnected by a programmable switch matrix. The two P.
FINAL COM’L: -5/7/10/12/15 IND: -7/10/12/14/18 MACH®111-5/7/10/12/15 High-Performance EE CMOS Programmable Logic DISTINCTIVE CHARACTERISTICS x 44 Pins in PLCC and TQFP x 32 Macrocells x 5 ns tPD Commercial, 7.5 ns tPD Industrial x 182 MHz fCNT x 32 I/Os; 4 dedicated inputs/clocks; 2 dedicated inputs x 32 Flip-flops; 4 clock choices x 2 “PALCE26V16” blocks x SpeedLocking™ for guaranteed fixed timing x Bus-Friendly™ Inputs and I/Os x Peripheral Component Interconnect (PCI) compliant (-5/-7/-10/-.

MACH111-15_AdvancedMicroDevices.pdf

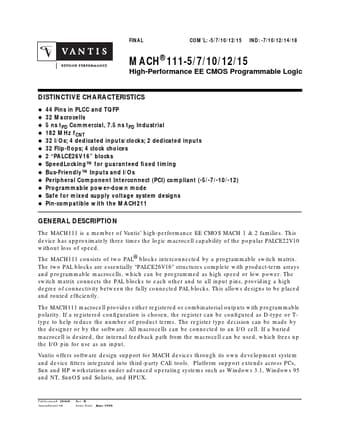

Preview of MACH111-15 PDF
MACH111-15 Datasheet Preview Page 2 MACH111-15 Datasheet Preview Page 3

Datasheet Details

Part number:

MACH111-15

Manufacturer:

Advanced Micro Devices

File Size:

145.28 KB

Description:

High-performance ee cmos programmable logic.
