1117CD-1.8 - AMS1117CD-1.8

This page provides the datasheet information for the 1117CD-1.8, a member of the 1117CD-18 AMS1117CD-1.8 family.

Datasheet Summary

Description

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential.

The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents.

Features

  • Three Terminal Adjustable or Fixed Voltages.
  • 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V.
  • Output Current of 1A.
  • Operates Down to 1V Dropout.
  • Line Regulation: 0.2% Max. www. DataSheet4U. com.
  • Load Regulation: 0.4% Max.
  • SOT-223, TO-252 and SO-8 package available AMS1117 1A LOW.

📥 Download Datasheet

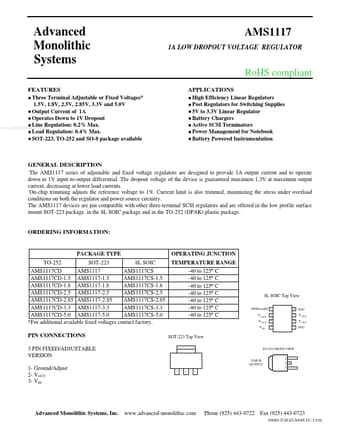

Datasheet preview – 1117CD-1.8

Datasheet Details

Part number 1117CD-1.8
Manufacturer Advanced Monolithic Systems
File Size 391.13 KB
Description AMS1117CD-1.8
Datasheet download datasheet 1117CD-1.8 Datasheet
Additional preview pages of the 1117CD-1.8 datasheet.

📁 Similar Datasheet

  • 1117 - 1A LOW DROPOUT LINEAR REGULATOR (YANGJING MICROELECTRONICS)
  • 1117AT33 - FAN1117AT33 (Fairchild Semiconductor)
  • 1110A - Single Phase Bridge (ETC)
  • 1110B - (1110xB) Single Phase Bridge (VMI)
  • 1110C - (1110xC) Single Phase Bridge (VMI)
  • 1110D - (1110xD) Single Phase Bridge (VMI)
  • 1110E - (1110xE) Single Phase Bridge (VMI)
  • 1110F - (1110xF) Single Phase Bridge (VMI)
  • 1110FA - 200V - 1000V Single Phase Bridge (ETC)
  • 1110FB - (1110xB) Single Phase Bridge (VMI)
Other Datasheets by Advanced Monolithic Systems

    Full PDF Text Transcription

    Click to expand full text
    Advanced Monolithic Systems FEATURES • Three Terminal Adjustable or Fixed Voltages* 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V • Output Current of 1A • Operates Down to 1V Dropout • Line Regulation: 0.2% Max. www.DataSheet4U.com • Load Regulation: 0.4% Max. • SOT-223, TO-252 and SO-8 package available AMS1117 1A LOW DROPOUT VOLTAGE REGULATOR RoHS compliant APPLICATIONS • High Efficiency Linear Regulators • Post Regulators for Switching Supplies • 5V to 3.3V Linear Regulator • Battery Chargers • Active SCSI Terminators • Power Management for Notebook • Battery Powered Instrumentation GENERAL DESCRIPTION The AMS1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential.
