AMS255 - MICROPOWER SHUNT VOLTAGE REFERENCE

Datasheet Summary

Description

The AMS255 is a two-terminal band-gap voltage reference diode featuring low dynamic impedance and good temperature coefficient, operating over a 100µA to 5mA current range.

On-chip trimming is used to provide tight voltage tolerance.

Features

  • Low Temperature Coefficient.
  • Low Output Noise.
  • Operating Current 100µ A to 5mA.
  • Low Dynamic Impedance.
  • Tight Output Voltage Tolerance.
  • Available in the sub-miniature SOT-23 Package AMS255.

📥 Download Datasheet

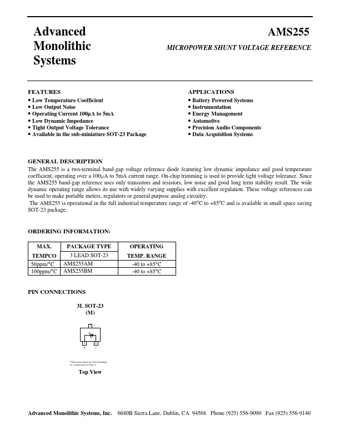

Datasheet preview – AMS255
