AMS4041 Datasheet - Advanced Monolithic Systems

MICROPOWER SHUNT VOLTAGE REFERENCE

AMS4041 Features

* Tight Output Voltage Tolerance

* Low Output Noise

* Operating Current 60µA to 100mA

* Low Dynamic Impedance

* Low Temperature Coefficient

* Available in the sub-miniature SOT-23 Package

* 2.5V Device ( AMS4040) also available AMS4041 MICROPO

AMS4041 General Description

The AMS4041 is a two-terminal micropower band-gap voltage reference diode featuring a very low dynamic impedance and good temperature coefficient, operating over a 60µA to 100mA current range. On-chip trimming is used to provide tight voltage tolerance. Since the AMS4041 band-gap reference uses only.

AMS4041 Datasheet (61.04 KB)

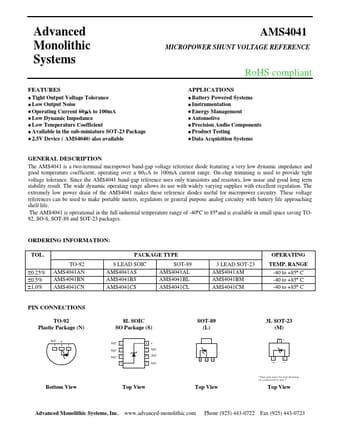

AMS4041 Datasheet Preview — Preview of AMS4041 PDF

Datasheet Details

Part number:

AMS4041

Manufacturer:

Advanced Monolithic Systems

File Size:

61.04 KB

Description:

Micropower shunt voltage reference.
