SD020-17-51-21X - (SD0xx-17-51-21X) High Speed si Pin Photodiode

Datasheet Summary

Features

  • 3 high-speed silicon photodiodes that have been specifically developed for the price-sensitive optical communication.

📥 Download Datasheet

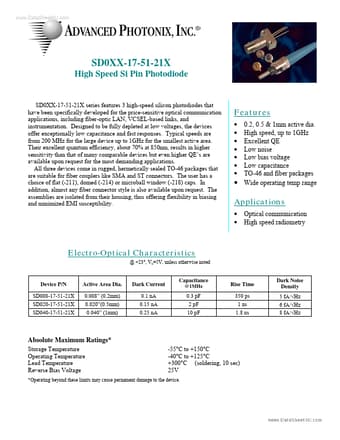

Datasheet preview – SD020-17-51-21X

Datasheet Details

Part number SD020-17-51-21X
Manufacturer Advanced Photonix
File Size 140.24 KB
Description (SD0xx-17-51-21X) High Speed si Pin Photodiode
Datasheet download datasheet SD020-17-51-21X Datasheet
Additional preview pages of the SD020-17-51-21X datasheet.

📁 Similar Datasheet

  • SD020-11-11-011 - (SD0xx-1x-1x-0xx) Photodiode (Silicon Detector)
  • SD020-1x-1x-0xx - (SD0xx-1x-1x-0xx) Photodiode (Silicon Detector)
  • SD02Hxx - (SD Series) Low Profile DIP Switches (ITT Industries)
  • SD03 - 500W Unidirectional TVS Diode (Leiditech)
  • SD03 - STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY (KD)
  • SD03 - Transient Voltage Suppressors Diode (SeCoS)
  • SD03 - Unidirectional TVS Diode (UDF)
  • SD0371P6W - TVS Diode (Leiditech)
  • SD03C - Low capacitance bidirectional TVS Diodes (Windforce)
  • SD03C - BIDIRECTIONAL TVS DIODE (Leiditech)
Other Datasheets by Advanced Photonix

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 7 SD0XX-17-51-21X High Speed Si Pin Photodiode SD0XX-17-51-21X series features 3 high-speed silicon photodiodes that have been specifically developed for the price-sensitive optical communication applications, including fiber-optic LAN, VCSEL-based links, and instrumentation. Designed to be fully depleted at low voltages, the devices offer exceptionally low capacitance and fast responses. Typical speeds are from 200 MHz for the large device up to 1GHz for the smallest active area. Their excellent quantum efficiency, about 70% at 850nm, results in higher sensitivity than that of many comparable devices but even higher QE’s are available upon request for the most demanding applications.
