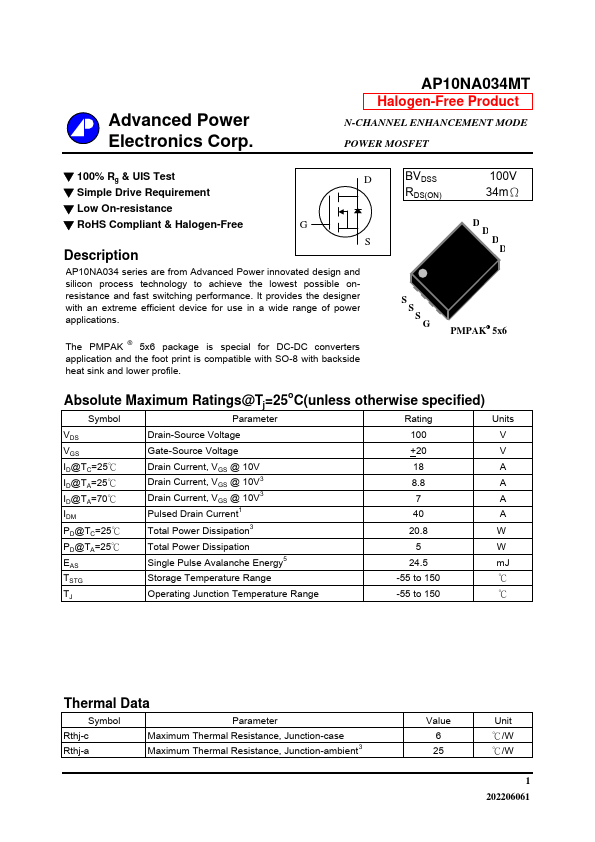

AP10NA034MT
Description
AP10NA034 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications.
The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is patible with SO-8 with backside heat sink and lower profile.
BVDSS RDS(ON)
100V 34mΩ
PMPAK® 5x6
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
. Parameter
Rating
Units
Drain-Source Voltage
Gate-Source Voltage
+20
ID@TC=25℃ ID@TA=25℃ ID@TA=70℃ IDM
Drain Current, VGS @ 10V Drain Current, VGS @ 10V3 Drain Current, VGS @ 10V3 Pulsed Drain Current1
PD@TC=25℃
Total Power Dissipation3
PD@TA=25℃ EAS
Total Power Dissipation Single Pulse Avalanche Energy5
24.5 m J
TSTG
Storage Temperature Range
-55 to...
