AP10NA034YT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP10NA034YT Description

Advanced Power Electronics Corp.AP10NA034YT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Siz.
AP10NA034 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switch.

AP10NA034YT Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 100V 34mΩ D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified

📥 Download Datasheet

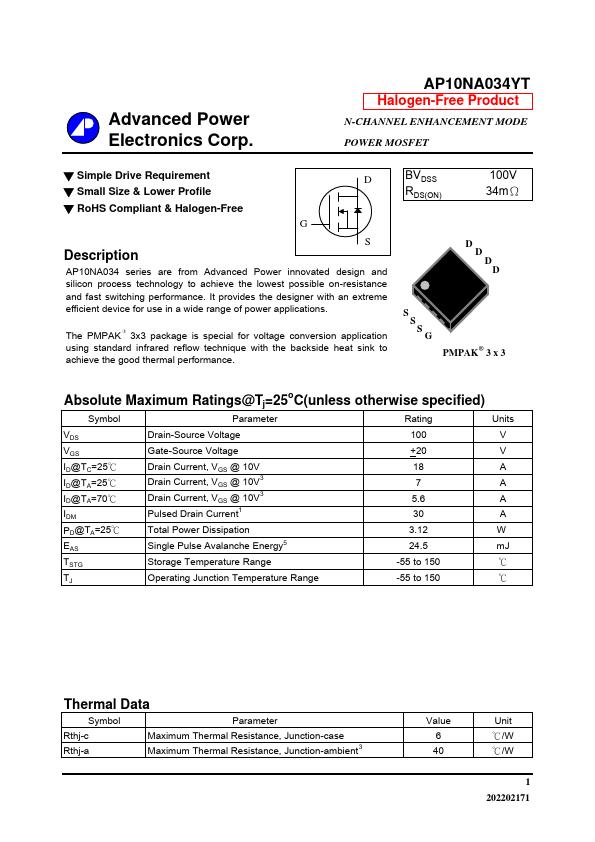

Preview of AP10NA034YT PDF

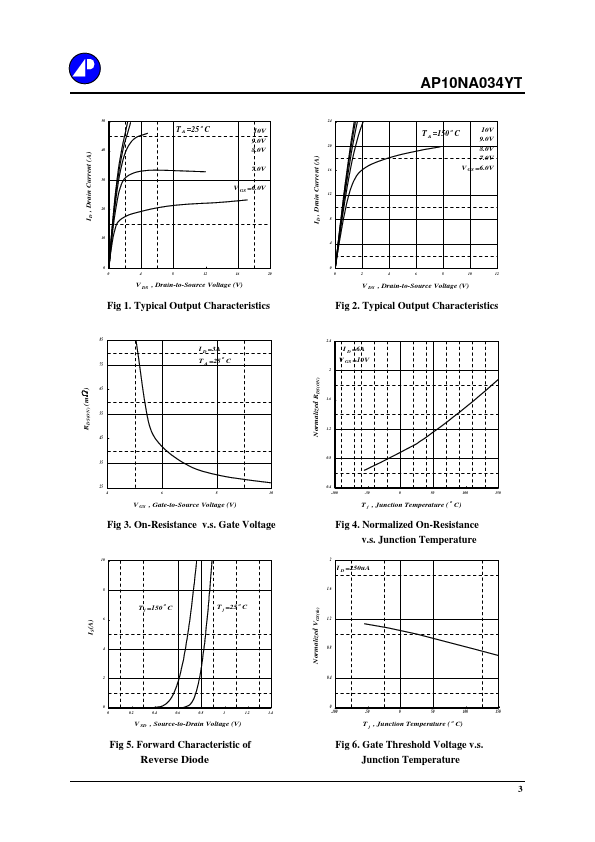

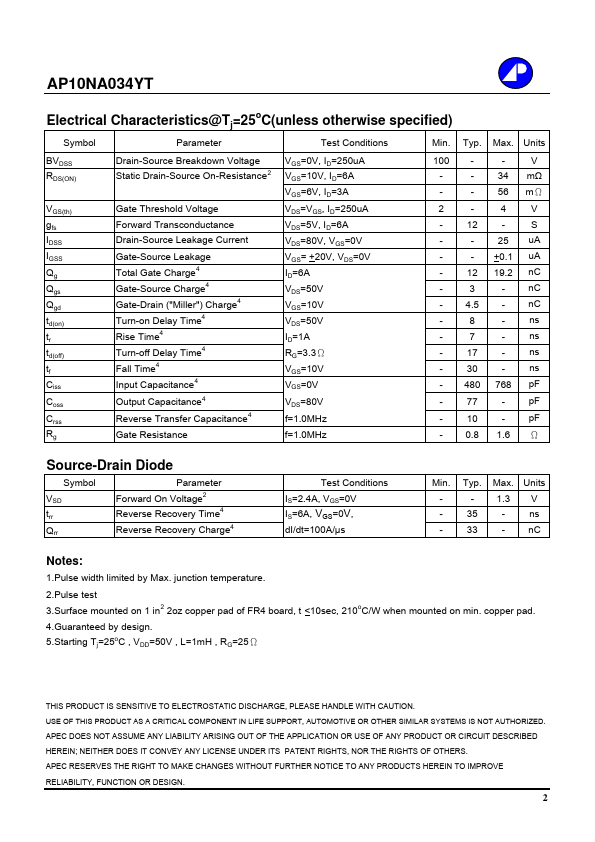

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP10NA034YT
Manufacturer
Advanced Power Electronics
File Size
103.45 KB
Datasheet
AP10NA034YT-AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
