AP2314GN N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP2314GN Description

Advanced Power Electronics Corp.AP2314GN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive ▼ Lower On-resis.
Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching,low on-resistance and cost-effectiveness.

AP2314GN Applications

* and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID G 20V 75mΩ 3.5A D S Absolute Maximum Ratings@Tj=25.oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain

📥 Download Datasheet

Preview of AP2314GN PDF

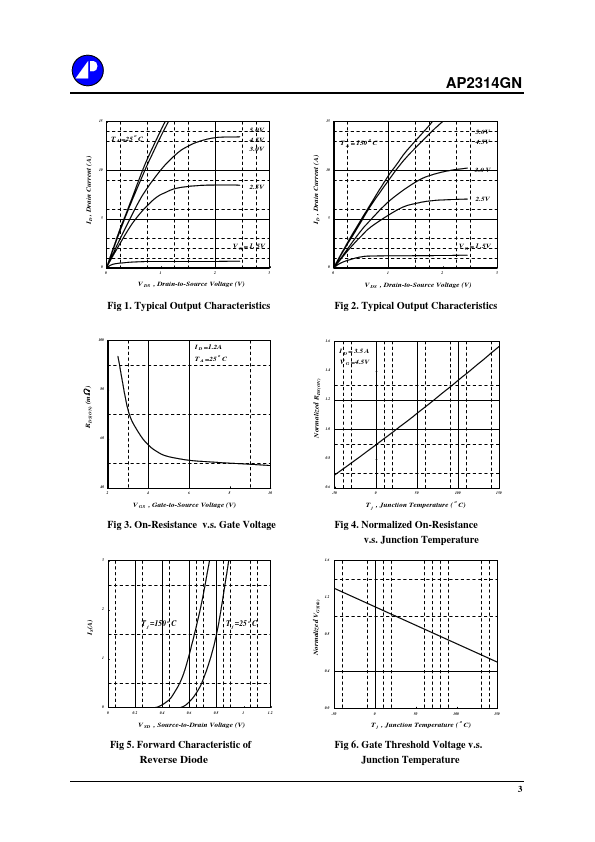

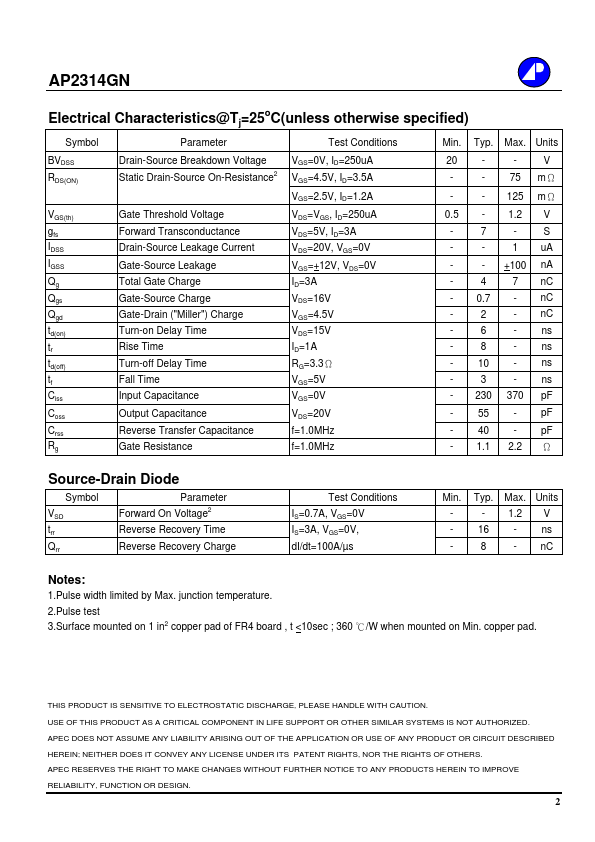

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP2314GN
Manufacturer
Advanced Power Electronics
File Size
60.74 KB
Datasheet
AP2314GN_AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
