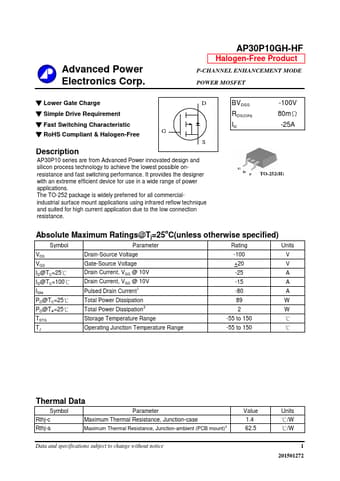

AP30P10GH-HF
Description
AP30P10 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The TO-252 package is widely preferred for all mercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance.
BVDSS RDS(ON) ID
-100V 80mΩ -25A
TO-252(H)
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
Parameter
Rating
Units
VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ PD@TA=25℃ TSTG TJ
Drain-Source Voltage Gate-Source Voltage Drain...
