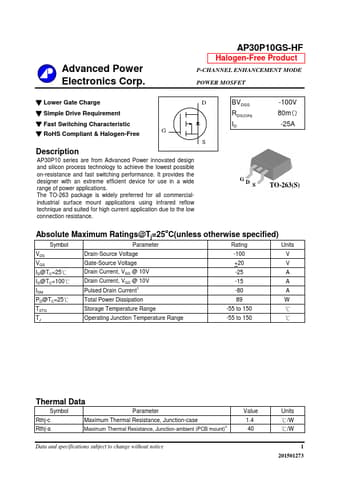

AP30P10GS-HF
Description
AP30P10 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The TO-263 package is widely preferred for all mercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance.
BVDSS RDS(ON) ID
-100V 80mΩ -25A
GD S
TO-263(S)
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
Parameter
Rating
Units
VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ
Drain-Source Voltage Gate-Source Voltage Drain Current, VGS @ 10V...
