APT75DQ100S, APT75DQ100B, ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

® 1000V 75A APT75DQ100B APT75DQ100S APT75DQ100BG * APT75DQ100SG * *G Denotes RoHS Compliant, Pb Free Terminal Finish.ULTRAFAST SOFT RECOV.

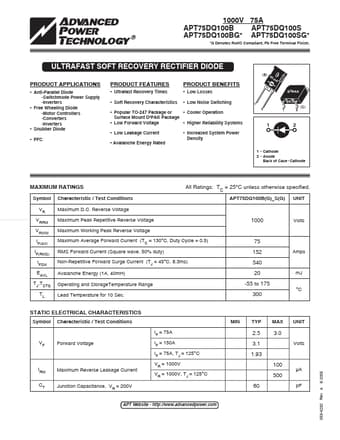

datasheet Preview Page 1 from Datasheet4u.com

APT75DQ100B_AdvancedPowerTechnology.pdf

APT75DQ100S Datasheet Preview — This datasheet PDF includes multiple part numbers: APT75DQ100S, APT75DQ100B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

APT75DQ100S, APT75DQ100B

Manufacturer:

Advanced Power Technology

File Size:

158.28 KB

Description:

ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

Note:

This datasheet PDF includes multiple part numbers: APT75DQ100S, APT75DQ100B.
Please refer to the document for exact specifications by model.

Features

* Ultrafast Recovery Times
* Soft Recovery Characteristics PRODUCT BENEFITS
* Low Losses
* Low Noise Switching 1 2 -2 4 7 D3PAK
* Cooler Operation
* Popular TO-247 Package or Surface Mount D3PAK Package
* Higher Reliability Systems

Applications

* Anti-Parallel Diode -Switchmode Power Supply -Inverters
* Free Wheeling Diode -Motor Controllers -Converters -Inverters
* Snubber Diode
