APT8056BVR Datasheet - Advanced Power Technology

APT8056BVR Power MOSFET

APT8056BVR 800V 16A 0.560Ω POWER MOS V ® Power MOS V® is a new generation of high voltage N-Channel enhancement mode power MOSFETs. This new technology minimizes the JFET effect, increases packing density and reduces the on-resistance. Power MOS V® also achieves faster switching speeds through optimized gate layout. TO-247 Faster Switching Lower Leakage 100% Avalanche Tested Popular TO-247 Package G D S MAXIMUM RATINGS Symbol VDSS ID IDM VGS VGSM PD .

APT8056BVR_AdvancedPowerTechnology.pdf

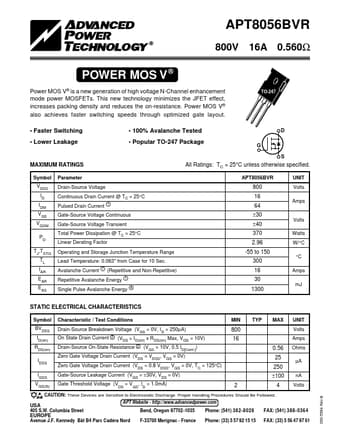

Preview of APT8056BVR PDF
APT8056BVR Datasheet Preview Page 2 APT8056BVR Datasheet Preview Page 3

Datasheet Details

Part number:

APT8056BVR

Manufacturer:

Advanced Power Technology

File Size:

61.33 KB

Description:

Power mosfet.
