MS1226 Datasheet, Applications, Advanced Power Technology

MS1226 Features

• Applications 30 MHz 28 VOLTS IMD = -28 dB POUT = 30 WATTS GP = 18 dB MINIMUM COMMON EMITTER CONFIGURATION DESCRIPTION: The MS1226 is a 28V epitaxial silicon NPN planar transistor designed primaril

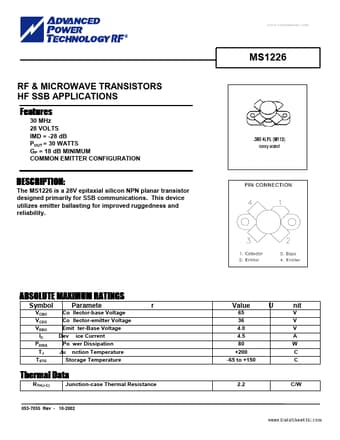

PDF File Details

Part number:

MS1226

Manufacturer:

Advanced Power Technology

File Size:

429.16kb

Download:

📄 Datasheet

Description:

Rf & microwave transistors hf ssb applications. The MS1226 is a 28V epitaxial silicon NPN planar transistor designed primarily for SSB communications. This device utilizes emitter

MS1226 Application

• Applications Features 30 MHz 28 VOLTS IMD = -28 dB POUT = 30 WATTS GP = 18 dB MINIMUM COMMON EMITTER CONFIGURATION DESCRIPTION: The MS1226 is a 28

TAGS

MS1226

Advanced Power Technology
