APM2140-P29

Medium Power Amplifier

Advanced Semiconductor Business

APM2140-P29 Features

* S21 = 31.4 dB @ 2110 MHz = 30.6 dB @ 2170 MHz

* NF of 2.0 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2140 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain Fl

APM2140-P29 General Description

The plerowTM APM-Series is an internally matched amplifier mini-module for such application band in SMD package with the output P1dB of 29 dBm. It is compactly designed for low current consumption and high OIP3. Integrating all the components for biasing and matching within the module enhances produ.

APM2140-P29 Datasheet (1.03 MB)

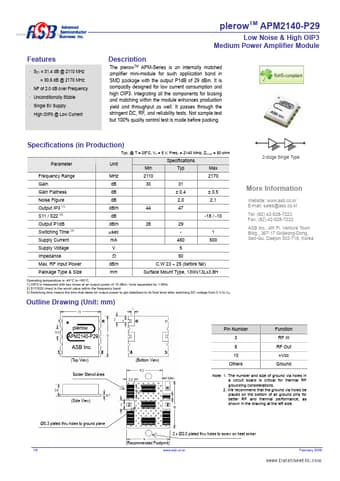

APM2140-P29 Datasheet Preview — Preview of APM2140-P29 PDF

Datasheet Details

Part number:

APM2140-P29

Manufacturer:

Advanced Semiconductor Business

File Size:

1.03 MB

Description:

Medium power amplifier.
