LT1001A, NPN SILICON HIGH FREQUENCY TRANSISTOR

LT1001A NPN SILICON HIGH FREQUENCY TRANSISTOR PACKAGE STYLE TO-39 B ØA 45° C .
E ØD The ASILT1001A is a High Frequency Transistor Designed for High Gain Low Noise CATV, and MATV Amplifier Applications.

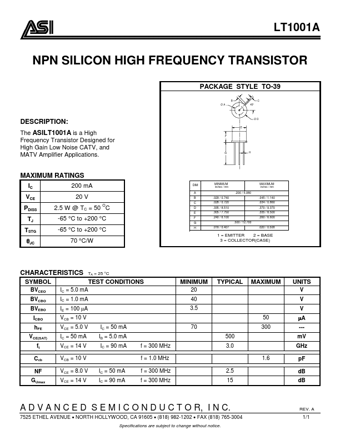

datasheet Preview Page 1 from Datasheet4u.com

LT1001A_AdvancedSemiconductor.pdf

LT1001A Datasheet Preview — Preview of LT1001A PDF

Datasheet Details

Part number:

LT1001A

Manufacturer:

Advanced Semiconductor

File Size:

13.17 KB

Description:

NPN SILICON HIGH FREQUENCY TRANSISTOR

Applications

* F G H MAXIMUM RATINGS IC VCE PDISS TJ TSTG θJC 200 mA 20 V 2.5 W @ TC = 50 C -65 °C to +200 °C -65 °C to +200 °C 70 °C/W O DIM A B C D E F G H .016 / 0.407 .029 / 0.740 .028 / 0.720 .335 / 8.510 .305 / 7.750 .240 / 6.100 .500 / 12.700 .020 / 0.508 MINIMUM inches / mm MAXIMUM inches / mm .200
