SD1425 - RF AND MICROWAVE TRANSISTORS

SD1425 Description

www.DataSheet4U.com SD1425 NPN SILICON RF POWER TRANSISTOR .
The ASI SD1425 is Designed for Class AB Linear Base Station Applications in the 800-900 MHz Frequency Range. Gold Metali.

SD1425 Features

* INCLUDE:
* Gold Metalization
* Input Matching
* Common Emitter
* Emitter Ballast Resistors PACKAGE STYLE .230 6L FLG MAXIMUM RATINGS IC VCBO VCES PDISS TJ T STG θ JC 5.0 A 50 V 45 V 43 W @ TC = 25 OC -65 OC to +200 OC -65 OC to +150 OC 3.0 OC/W 1,3,4,6 = EMITTER 2 =

📥 Download Datasheet

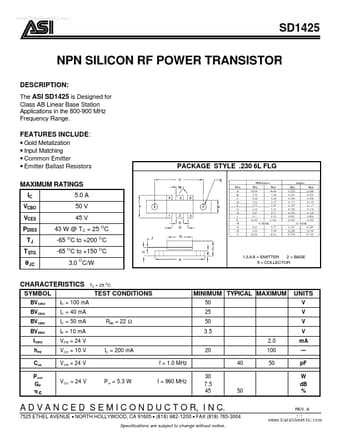

Preview of SD1425 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SD1425
Manufacturer
Advanced Semiconductor
File Size
59.00 KB
Datasheet
SD1425_AdvancedSemiconductor.pdf
Description
RF AND MICROWAVE TRANSISTORS
