AXHV6006 VCO - Voltage Controlled Oscillator

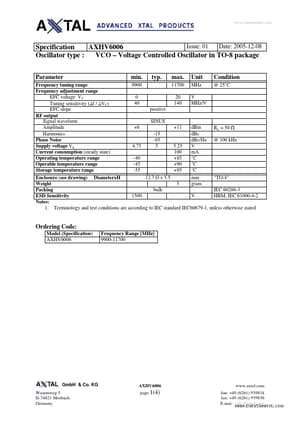

www.DataSheet4U.com Issue: 01 Date: 2005-12-08 Specification AXHV6006 Oscillator type : VCO Voltage Controlled Oscillator in TO-8 package Parameter min. typ. max. Unit Condition 9900 11700 MHz @ 25°C Frequency tuning range Frequency adjustment range EFC voltage VC 0 20 V 40 140 MHz/V Tuning sensitivity (∆f / ∆VC) EFC slope positive RF output Signal waveform SINUS Amplitude +6 +11 dBm RL = 50 Ω Harmonics -15 dBc -85 dBc/Hz @ 100 kHz Phase Noise Supply voltage VS 4.75 5 5.25 V Cu.
