DKV6520-12 - SILICON HYPERABRUPT VARACTOR DIODE

Description

The ASI DKV6520-12 is an Silicon Hyperabrupt Varactor Diode Designed for VHF/UHF Filters and Oscillators Requiring Octave Tuning.

📥 Download Datasheet

Datasheet Details

Part number DKV6520-12
Manufacturer Advanced
File Size 13.21 KB
Description SILICON HYPERABRUPT VARACTOR DIODE
Datasheet download datasheet DKV6520-12 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DKV6510 SILICON HYPERABRUPT TUNING VARACTOR ALPHA
DKV6510 SILICON HYPERABRUPT TUNING VARACTOR ALPHA
DKV6515 SILICON HYPERABRUPT TUNING VARACTOR ALPHA
DKV6516 SILICON HYPERABRUPT TUNING VARACTOR ALPHA
DKV6517 SILICON HYPERABRUPT TUNING VARACTOR ALPHA

Other Datasheets by Advanced

Part Number Description
DKV6522 SILICON HYPERABRUPT TUNING VARACTOR DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

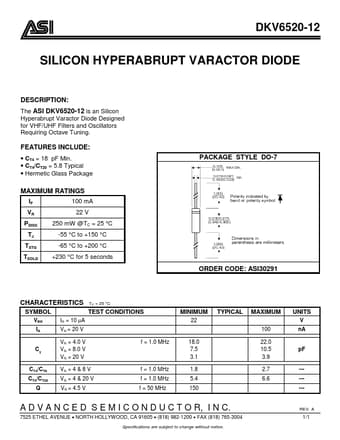

DKV6520-12 SILICON HYPERABRUPT VARACTOR DIODE DESCRIPTION: The ASI DKV6520-12 is an Silicon Hyperabrupt Varactor Diode Designed for VHF/UHF Filters and Oscillators Requiring Octave Tuning. FEATURES INCLUDE: • CT4 = 18 pF Min. • CT4/CT20 = 5.8 Typical • Hermetic Glass Package PACKAGE STYLE DO-7 MAXIMUM RATINGS IF VR PDISS TJ TSTG TSOLD 100 mA 22 V 250 mW @TC = 25 °C -55 °C to +150 °C -65 °C to +200 °C +230 °C for 5 seconds ORDER CODE: ASI30291 NONE CHARACTERISTICS SYMBOL VBR IR IR = 10 µA VR = 20 V VR = 4.0 V VR = 8.0 V VR = 20 V TC = 25 °C TEST CONDITIONS MINIMUM 22 TYPICAL MAXIMUM 100 UNITS V nA f = 1.0 MHz CT CT4/CT8 CT4/CT20 Q 18.0 7.5 3.1 1.8 5.4 150 22.0 10.5 3.9 2.7 6.6 pF VR = 4 & 8 V VR = 4 & 20 V VR = 4.5 V f = 1.0 MHz f = 1.
